15.6 Inch High Brightness Monitor With Capacitive Touchscreen For Outdoor Kiosk
Sunlight Readable LCD monitors are the best choice for applications where the sun's rays will be falling directly onto the face of the monitor, it;s specifically designed as a low-cost solution for use in bright sunlight
conditions. The 1000 nits brightness enable the user to see sharp, brilliant color video images even in bright ambient (indirect and reflected) light conditions.
Feature
1. 15.6" TFT LCD panel with LED backlight.
2. Robust and durable all-metal enclosure is aluminum alloy.
3. Adopt HDMI 1.4 Digital decoding scheme, strong compatibility
4. Demountable embedded screws and holes for mounting, ideal for Kiosk/Self-service terminals
5. Brightness is upto 1000 nits.
6. Front panel is IP65 waterproof,dustproof and shockproof.
Application
It is ideal for applications such as self-service kiosk, vending machine, self-service storage cabinet, retail store, outdoor inspection equipment, other applications in brightly-lit environments, marine/Sailing boat, tennis courts and other outdoor sporting grounds.
Specifications
| Model:SL156 |
| LCD panel |
| Panel size | 15.6" |
| Resolution | 1366*768 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000cd/m², sunlight readable |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel |
| Touchscreen Type | Project Capacitive Touch (10 points ) |
| Surface Hardness | 7H |
| Luminousness | 90% |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Working Life | >50 million times |
| Touch options | (4 or 5 wires restive touch, IR touch optional) |
| Signal Ports |
| VGA | 1×VGA |
| DVI | 1×DVI |
| HDMI | 1×HDMI |
| Audio in/out | optional |
| OSD |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
| Support OS | Windows XP , Windows /7/8/10 , Linux, Mac OS X, Android ect. |
| Power Supply |
| External Power Supply | AC 100 - 240V , 50-60Hz |
| Working voltage | DC 12V |
| Power consumption | ≤35W |
| Enclosure |
| Material | Aluminum Alloy |
| Color | Black, white, Silver , color can be customized |
| VESA mounting | 75×75mm/100×100mm |
| IP grade | front panel IP65 |
| Operating Environment |
| Temperature Range | operating: -10 to 60°C, storage :-20 to 80°C |
| Relative humidity | operating: 10% to 80% , storage :5% to 90% |
| Packing Details |
| Net weight | 2.5kg |
| Gross weight | 3kg |
| Product Dimension | 42×26.9×4.8cm |
| Packing size | 47*44*18cm |
| Accessories | Power adapter, VGA cable, USB touch cable,embedded screws,user manual,
warranty card |
| Other |
| Mounting | embedded mounting screws |
| wall mounting brackets (optional) |
| desk stand holder (optional) |
| Warranty | 3 years warranty |
| Certificates | CE,FCC,RoHS |
Attention of warranty
1. First year warranty: by free
2. 2nd to 3rd year warranty: maintaining by some charges.

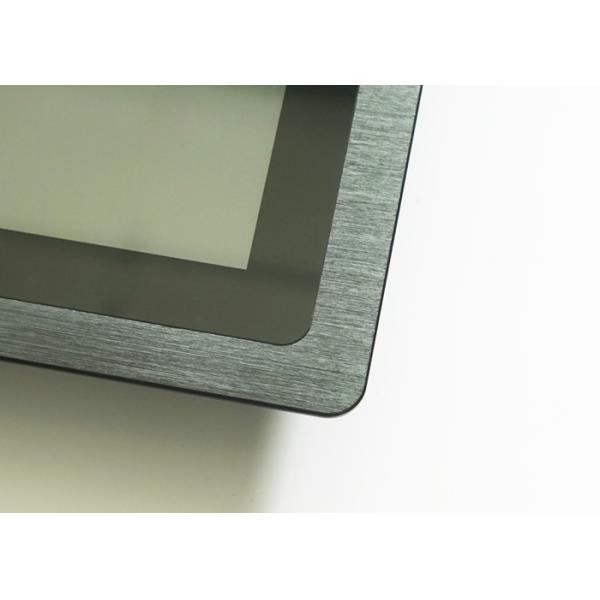

Pictures
