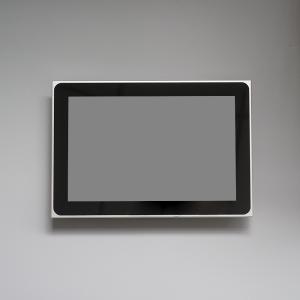

High Resolution Capacitive Touch Monitor , Open Frame Touchscreen Monitor 10.1''

Brand Name : Sihovision

Model Number : SL101

Certification : CE,FCC, RoHS

Place of Origin : Shenzhen,China

MOQ : 1 Piece

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, Paypal, MoneyGram

Product name : 10.1 inch open frame lcd monitor

Products status : Stock

Resolution : 1920 x 1200

Screen size : 10.1"

Interface : VGA,HDMI, DVI

Brightness : 400 nits

Response time : 5ms

Touch type : Resistive Touch or Capacitive touch

Touch points : 10 Points

Viewing angle : 80/80/80/80(L/R/U/D)

Material : Aluminum Alloy Frame

Power supply : DC 12V(AC 100-240V 50/60Hz)

Warranty : 1 Years

Contact Now

Features:


1. Front bezel aluminum alloy brushed metal craft,seamless design.
2. Industrial LCD panel, full viewing angle, high nits, true color. high resolution:1920*1200
3. Adopt multi-points PCAP touch panel , high sensitive and fast-response.
4. High performance mainboard, 7x24 continuous operation.
5. Support wall mounting,embedded mounting,desk stand mouting etc.

Specification

Model:SL101
LCD panel
Panel size 10.1"
Resolution 1920*1200
Aspect ratio 16:10
Support Color 16.7M colors
Brightness (cd/m²) 400+
Contrast ratio 1000:1
View angle 89°/89°/89°/89° (R/L/U/D)
Touch panel
Touchscreen Type Project Capacitive Touch (10 points )
Surface Hardness 3H
Luminousness 90%
Touch Interface USB (RS232 optional)
Touch response time 2ms
Working Life >50 million times
Touch options (4 or 5 wires restive touch, IR touch optional)
Signal Ports
VGA 1×VGA
DVI 1×DVI
HDMI 1×HDMI
Audio in/out optional
OSD
OSD control Brightness, contrast ratio, auto adjustment, H/V position, language select etc.
Support languages English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.
Support OS Windows XP , Windows /7/8/10 , Linux, Mac OS X, Android ect.
Power Supply
External Power Supply AC 100 - 240V , 50-60Hz
Working voltage DC 24V
Power consumption ≤35W
Enclosure
Material aluminium alloy bezel+High strength cold rolled steel back case
Color Black, white, Silver , color can be customized
VESA mounting 75×75mm
Operating Environment
Temperature Range operating: -10 to 60°C, storage :-20 to 80°C
Relative humidity operating: 10% to 80% , storage :5% to 90%
Packing Details
Net weight 1.5kg
Gross weight 2kg
Product Dimension 26.14×17.9×3.22cm
Packing size 30*30*10cm
Accessories power cord,HDMI cable, USB touch cable,embedded screws,
Other
Mounting open frame
embedded mounting screws
wall mounting brackets (optional)
desk stand holder (optional)
Warranty 1 year warranty
Certificates CE, FCC, RoHS

Drawing

High Resolution Capacitive Touch Monitor , Open Frame Touchscreen Monitor 10.1''

High Resolution Capacitive Touch Monitor , Open Frame Touchscreen Monitor 10.1''

High Resolution Capacitive Touch Monitor , Open Frame Touchscreen Monitor 10.1''

Application
Smart City
Intelligent Education
Public Transportation
Commercial Terminals
Industrial automation area
Product Stamping and Packaging
